uPVC Borehole Casing Pipes

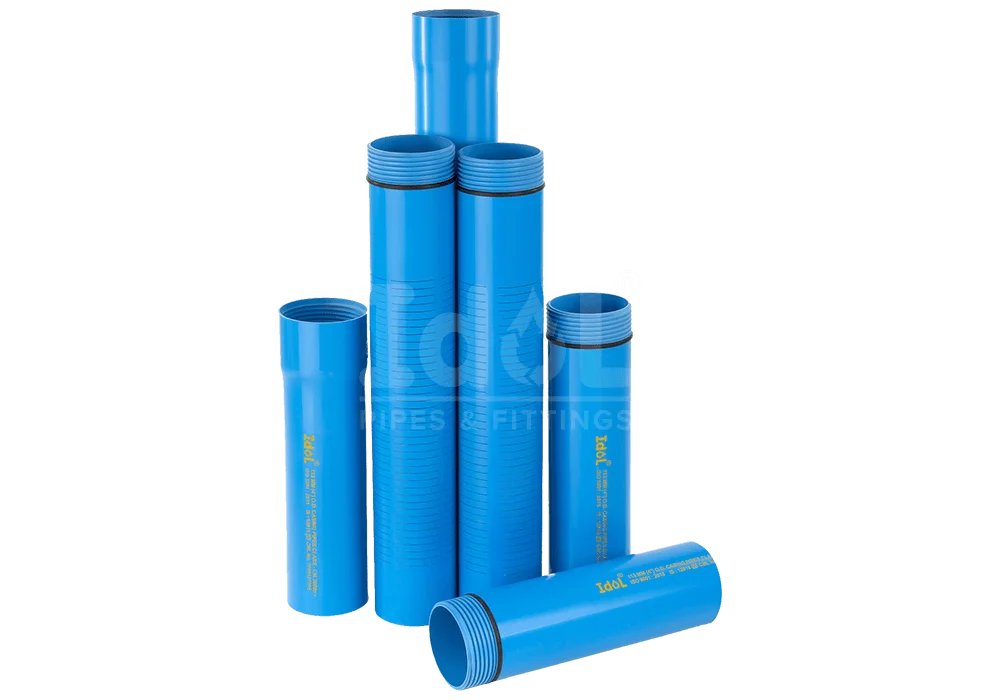

casn-1-min

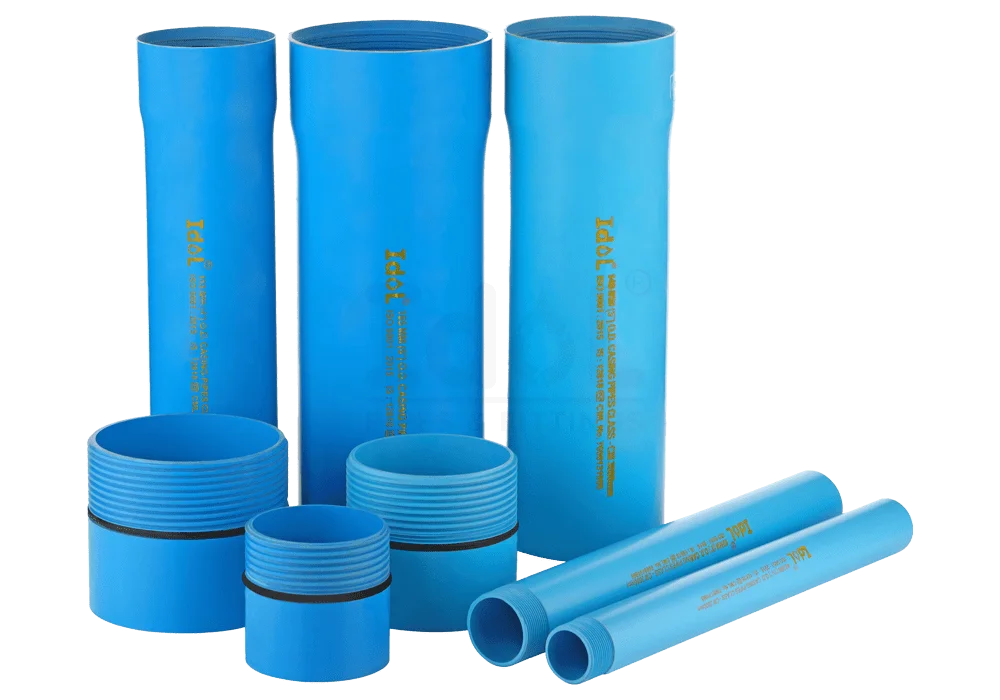

casn-2-min
Casing Pipes Conforming to IS 12818:1992. These Pipes are manufactured as per BIS standard and are available in deep blue colour. One end of the pipe is male threaded whereas other end is female threaded socket. Threads are either ‘V’ Type or trapezoid type and protection caps are provided on the threads to protect the threads in transit. Pipes of Medium Well (C.M.) are available. Shallow Well Pipes can be used for depths up to 80 meters, medium Well Pipes can be used up to 250 meters.

Screen/slotted pipes can also be used for

  • To provide effective soakways for storm water infiltration.
  • Effective way for recharging ground water.
  • To improve groundwater levels and availability.
  • To conserve surface water runoff during monsoon.
  • Controlled and reduced volume of discharge into existing main sewer systems and water courses.

Submersible Column Pipes Applications

Light in Weight

These pipes are light in weight and hence transportation and installation become easy. This is a major advantage particularly in remote rural areas where road communications are not satisfactory and well construction is a one-time exercise.

Quick and Convenient Installation

These pipes are provided with good quality threaded joints due to which they can be easily assembled and installed where drilling is done by hand with lightweight drilling rig or even with large capacity drilling machines.

Excellent Strength and Stiffness

These pipes have excellent stiffness and meet all the mechanical properties as per IS 12818. They have excellent hydrostatic collapse pressure that is capable of withstanding the external hydraulic pressure they would be subjected to during well construction.

Non Toxic

The material of the pipe is non-toxic and hence does not impart any taste, odour and color. It does not release any harmful substances to water from well, which could cause health problems. It is free from bacteria and hence absolutely safe for carrying drinking water.

Non Conductive

uPVC is non-conductor of electricity and hence eliminates any electro-chemical reaction with groundwater, which could cause encrustation of screens.

Longer Lasting

Being free from rusting, weathering and chemical reaction and due to excellent mechanical properties, Idol casing pipes last for lifetime.

Economical

Apart from all the advantages listed above, Idol uPVC Casing Pipes and Screens provide the best cross benefit ratio when compared to other materials or even alternative uPVC Casing Pipes available in the market.

Screen/slotted Pipes

Screen or slotted pipes are used for casing in groundwater section to allow water to enter inside the well. These pipes can also be used to provide soak-ways for the storm water/rain water to infiltrate back into surrounding ground. Thus we can recharge the groundwater resource and avoid the wastage of rain water in the form of runoff. These percolation pipes can also be used in roof top water harvesting in the form of percolation pit, recharge the groundwater.

Application of Casing Pipes

Borewell Casing, Irrigation, Domestic, Industrial mining, Chemical distribution.
uPVC is nearly inert towards corrosion, chemical reaction and due to which, it is ideally used in salty, sandy and chemically aggressive water without any effect over the years.
A wise replacement for MS, ERW, GI, Asbestos and Cement and SS Pipes.

Specification

  • Maximum installation depth, 250m for CM series.
  • Installation: Vertical, Horizontal or Inclined.

Special Features

  • Specification followed IS 12818:2010 equivalent to DIN 4925.
  • Trapezoidal threaded socket & spigot ends for easy, reliable jointing, long and better strength.
  • Surface finish of this pipe is extremely smooth which reduces the hydraulic friction.

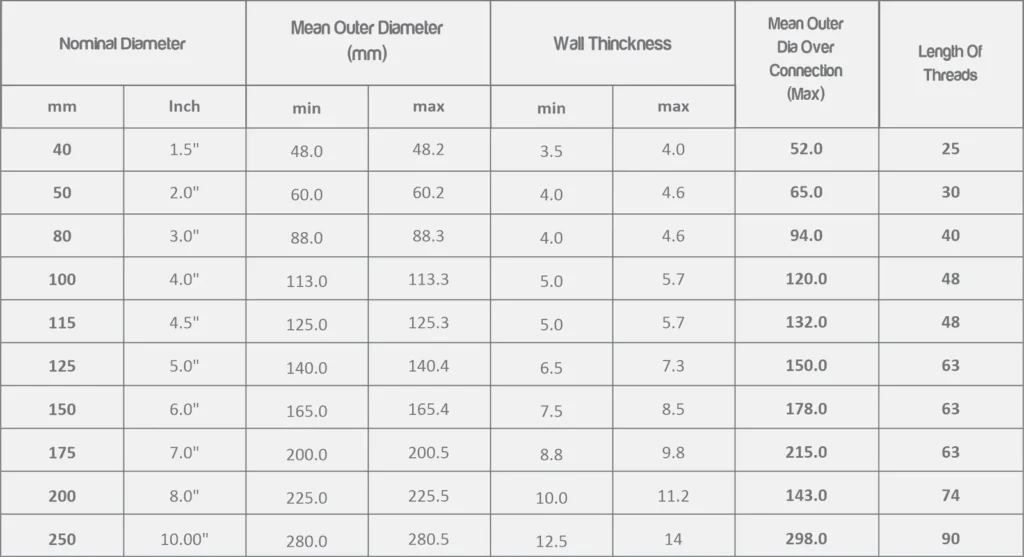

CM casing Pipe

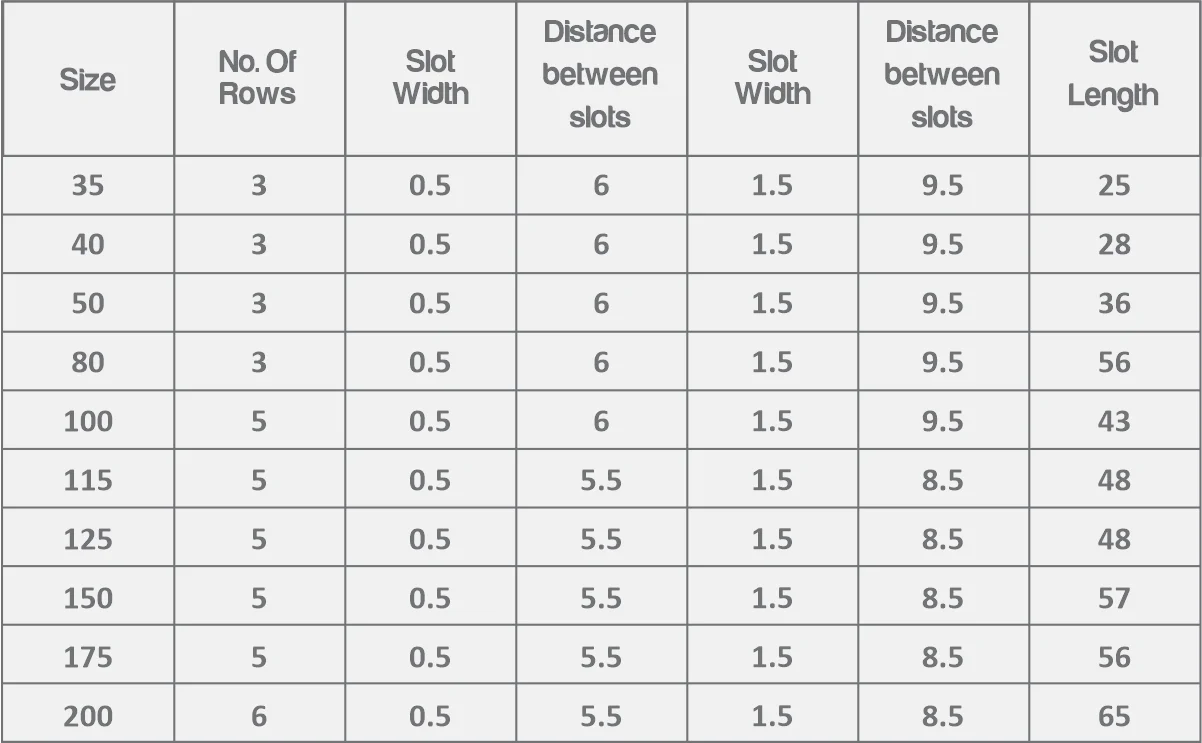

Dimensions details of Screen / slots ofCasing Pipes conforming to IS 12818:1992

Dimensions details of Screen / slots of SDR pipes/pipes conforming to IS 4985 used as casing
